Home > Products > Cans Fish > 307D round wholesale 2 pieces metal tuna tinplate food grade cans fish tin can

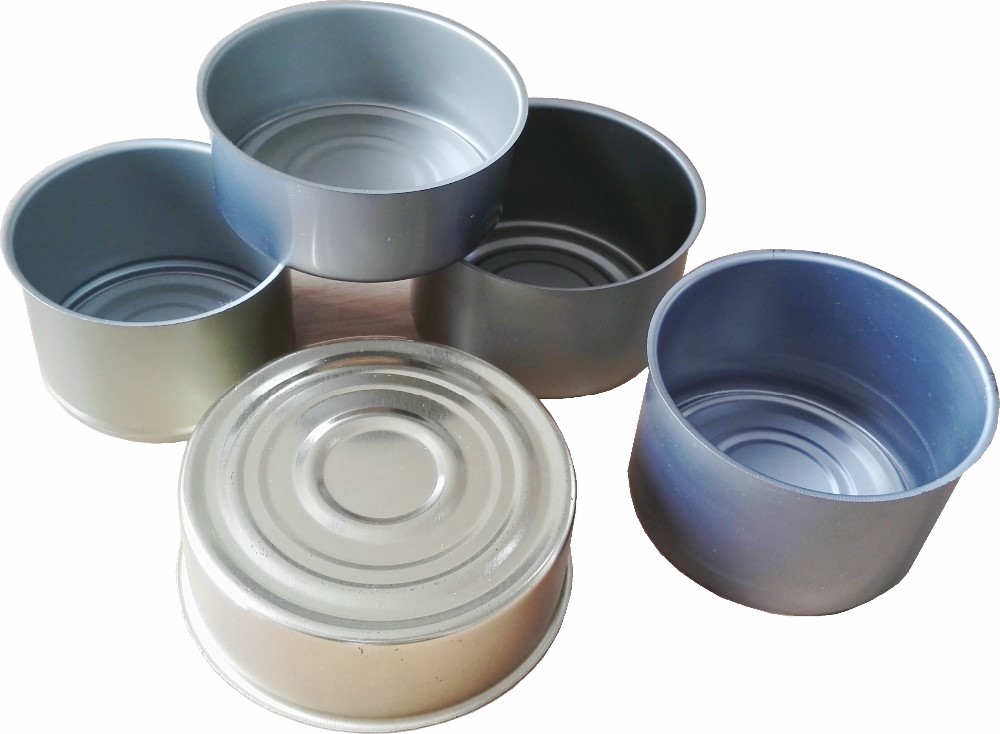

307D round wholesale 2 pieces metal tuna tinplate food grade cans fish tin can

  • 307D round wholesale 2 pieces metal tuna tinplate food grade cans fish tin can
  • 307D round wholesale 2 pieces metal tuna tinplate food grade cans fish tin can

307D round wholesale 2 pieces metal tuna tinplate food grade cans fish tin can

    Unit Price: 80000~100000 USD
    Min. Order: 1 Set/Sets
    Packaging: Seaworthy Packaging
    Transportation: Ocean
    Supply Ability: 5 Set/Sets per Quarter
    Port: Ningbo/Shanghai

Product Description

Product Description

Product Application

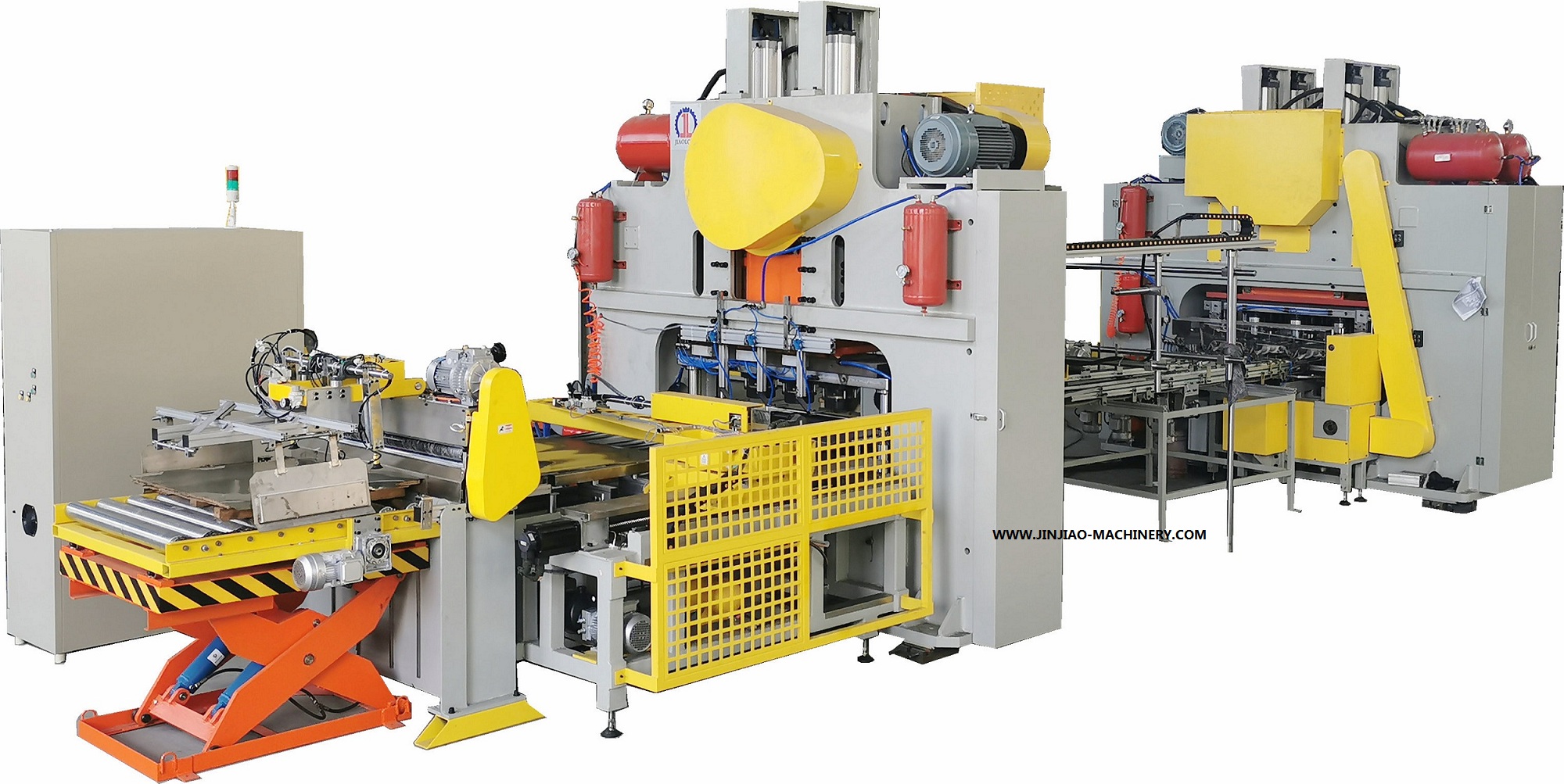

This machine is a high speed and high precision automatic two-piece can production equipment. It is suitable for all kinds of 2-piece can made by the tinplate (aluminum). The whole sheet (aluminum) from the cylinder feedstock, automatic position pushing, servo feeding, mechanical hand stuffing , servo feeding, can stamping, second stretching and forming,then trimming, automatic out of the cans to palletizer with fully automatic operation, no manual operation. The whole line equip with three CNC high precision press, which is first stamping, second stretching and forming, the last trimming.

SPECIFICATIONS FOR 2-PIECE CAN MAKING PRODUCTION LINE
Parameters
Mode
GT2A4-120-T
GT2A4-100
GT2A4-60-T
(First feeding and stamping)
(Second stretching and forming)
(Trimming)
Normal Pressure
120T
100T
60T
Max stroke times
120
110
120
Max die installed
3
3
3
Max sheet size
1100*1100
1100*1100
1100*1100
Max sheet thickness
0.4mm
0.4mm
0.4mm
Total Power
25kw
35kw
13kw
Installation size
14000*1500*2800
Total weight
14.5T
16T
8.5T

Main Features

1. Man-machine interface and simple operation.
2. Using the mechanical arm servo feeding, the automation degree is high.
3. Equipped with various alarm protection, safe and convenient to maintain.
4. Adopt the gantry bed, no gap guide running, when with high speed operation it has good stability and high precision.
5. Use the whole sheet blanking to improve efficiency and reduce the loss of raw materials.
